FLYSKY FS-I6X 6CH 2.4GHZ RADIO SYSTEM W/IA6B RECEIVER MODE 2

The AFHDS 2A (Automatic Frequency Hopping Digital System Second Generation) developed and petented by FLYSKY is specialy developed for all radio control models. Offering superior protection against interference while maintaining lower power consumption and high reliable receiver senstivity, FLYSKY's AFHDS technology is considered to be one of the leaders in the RC market today.

FEATURES

Bi-directional Communication

Capable of sending and receiving data, each transmitter is capable of receiving data from temperature, altitude and many other types of sensors, servo calibration and i-BUS Support.

Multi-channel Hopping Frequency

This system bandwidth ranges from 2.408GHz to 2.475GHz. This is pided in 135 channels. Each transmitter hops between 16 channels (32 for Japanese and Korean version) in order to reduce interference from other transmitters.

Omni-directional Gain Antenna

The high efficiency Omni-directional high gain antenna cuts down on interference, while using less power and maintaining a strong reliable connection.

Unique ID Recgnition System

Each transmitter and receiver has it's own unique ID. Once the transmitter and receiver have been paired, they will only communicate with each other, preventing other systems accidentally connecting to or interfering with the systems operation.

Low Power Consumption

The system is built using highly sensitive low power consumption components, maintaining high receiver sensitivity, while consuming as little as one tenth the power of a standard FM system, dramatically extending battery life.

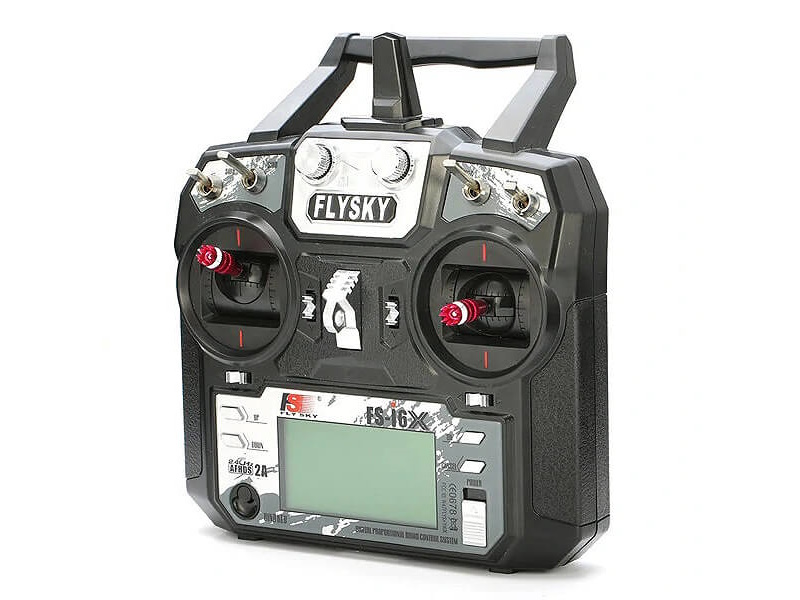

SPECIFICATIONS (TRANSMITTER)

Item: FS-i6X RC Transmitter
Channel: 6-10 (Default 6CH)
Model Type: Fixed-Wing/Gliders/Helicopter
Mode (optional): Mode 2 (Left Hand Throttle)
RF Range: 2.408-2.475GHz
RF Power: < 20dBm
RF Channel: 135
Bandwidth: 500KHz
2.4GHz System: AFHDS 2A / AFDHS
Modulation Type: GFSK
Stick Resolution: 4096
Low Voltage Warning: < 4.2V
DSC port: PS/2 Port PPM
Chargeable: No
Antenna Length: 26mm (Dual Antenna)
Weight: 392g
Power: 6V DC 1.5AA*4
Display: STNTransflective Display, LCD 128x64 Lattice, VA 73x39mm, LCD with white backlight
Size: 174x89x190mm
On-line Update: Yes
Colour: Black
Certificate: CE0678, FCC ID: N4ZFLYSKYI6X

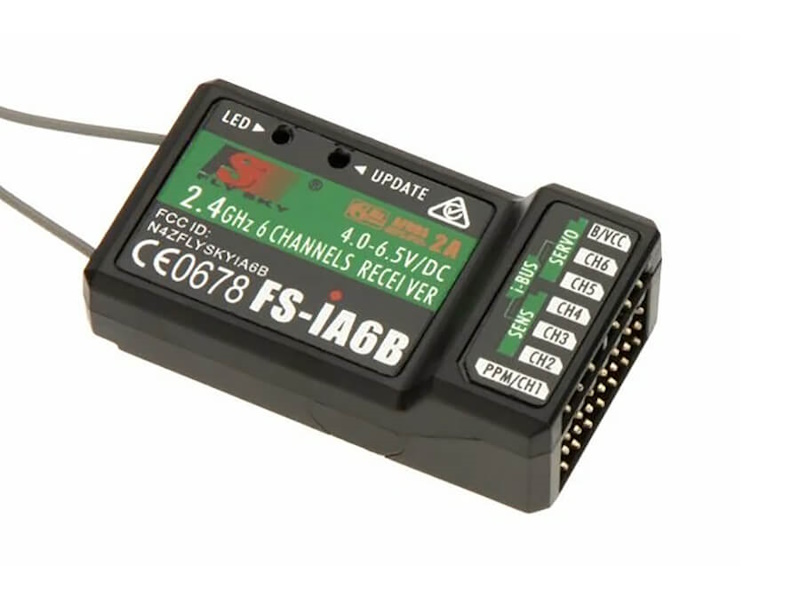

SPECIFICATIONS (RECEIVER)

Channel: 6
Frequency Range: 2.4055--2.475GHZ
Band Width Number: 140
Transmitting Power: ≤ 20dBm
RF Receiver Sensitivity: -105dbm
2.4G Mode: The second generation of an enhanced version of the automatic FM digital system
Encoding: GFSK
Antenna Length: 26mm * 2 (dual antenna)
Input Power: 4.0-6.5V DC
Dimension: 47 x 26.2 x 15mm
Weight: 14.9g
Colour: Black
i-Bus Interface: Yes
Data Acquisition Interface: Yes
Model Type: Airplane / Gliders / Helicopter
Compatible Transmitter: Compatible with FS-i4,FS-i6,FS-i10,FS-GT2E,FS-GT2G

WHAT'S INCLUDED

  • 1 x Flysky FS-i6X 10CH 2.4GHz AFHDS 2A RC Transmitter
  • 1 x Flysky A6B i-BUS Receiver
